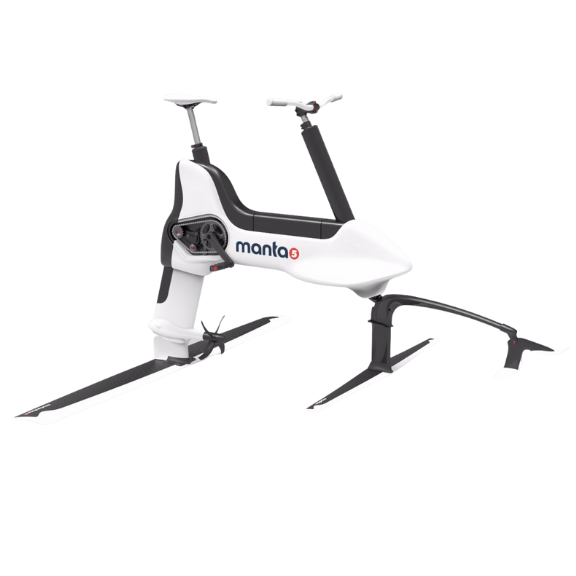

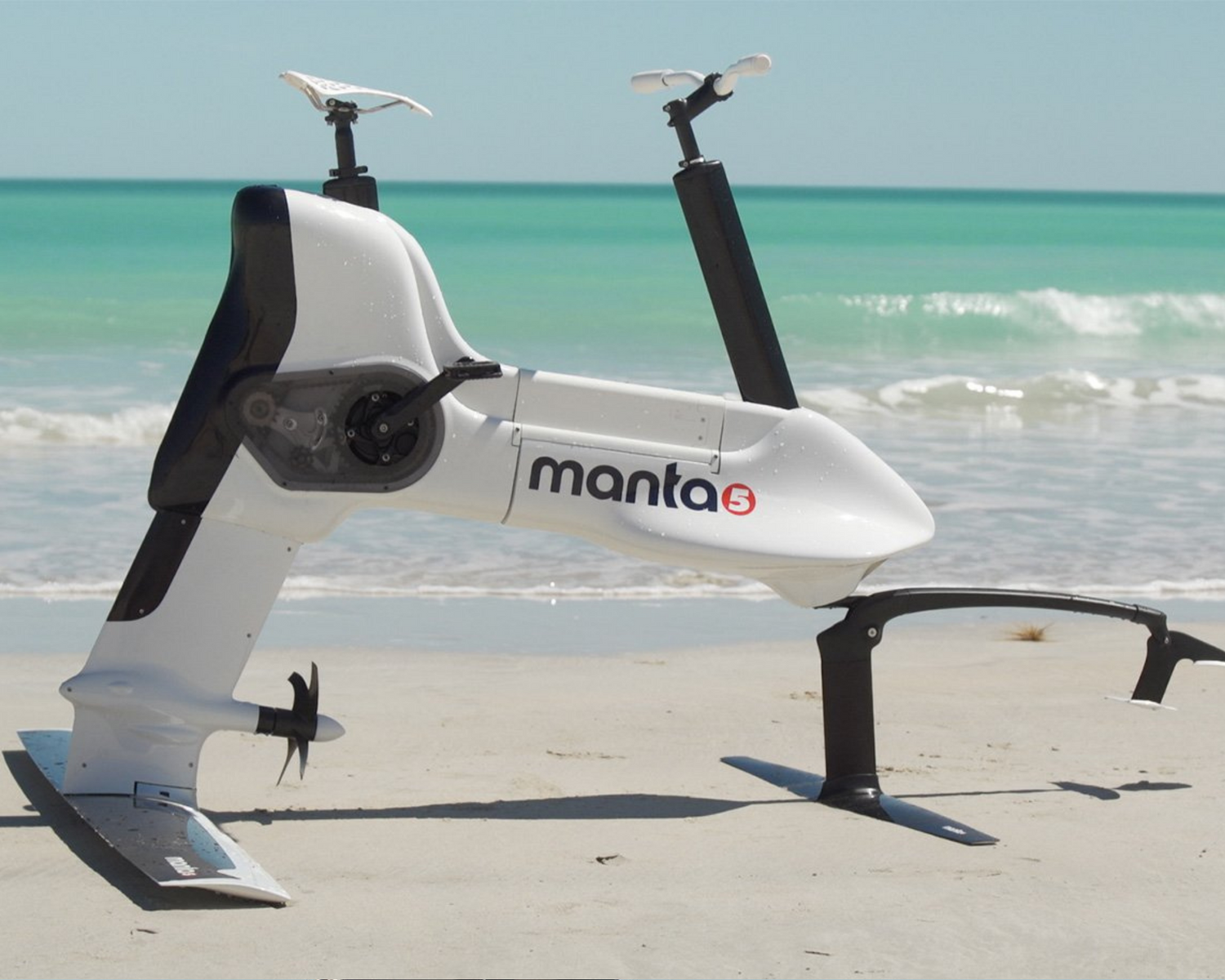

Manta5 Hydrofoil eBike
Be one of the first ones, to discover this new lifestyle trend.
Experience Cycling's New Frontier on the world's first hydrofoil eBike that replicates the cycling experience on the water. No roads, no traffic. Using the same technology as America’s Cup sailboats this Hydrofoil eBike opens up a whole new cycling frontier. Suitable for a wide range of fitness levels, riders can explore ocean coastlines, train along waterways, or cruise the lakeside with friends and family. Fast and maneuverable, get ready to experience the thrill of cycling on the open water - no roads, no traffic.
Variable pedal assist can be dialed up or down to fit your needs.
・Top speed of up to 12 mph (similar to traditional sailboats).
・Modular design for quick assembly and transport to and from the water.

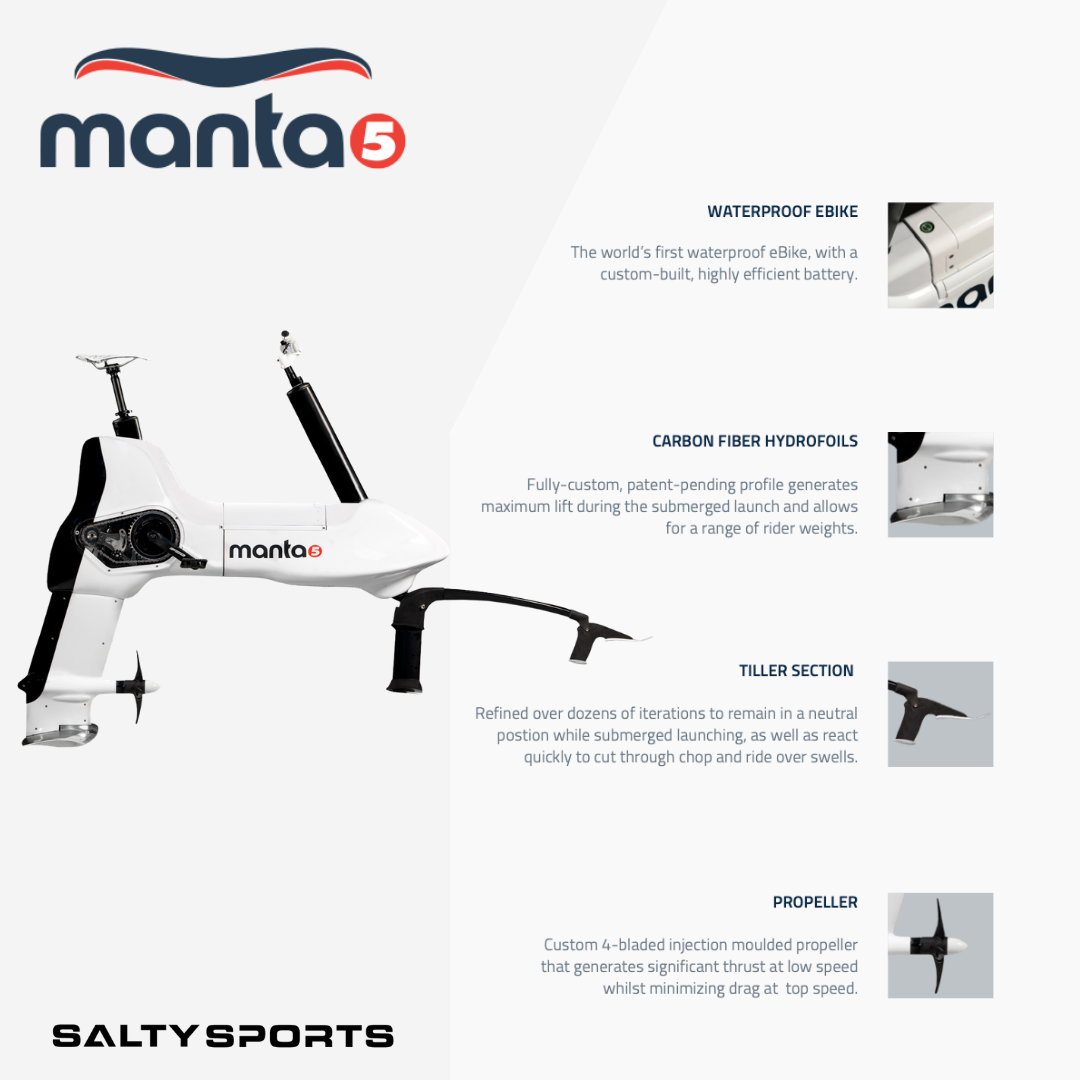

CHASSIS AND GEARS
・Aircraft-grade TIG welded 6061-T6 aluminum frame
・Hybrid drivetrain with industry-standard components for easy replacement
・Buoyancy modules designed to streamline the Hydrofoiler both above and below the water
・Easy maintenance crank-set, gearbox, and propeller/shaft sub-assembly
・IPX8 rated electric motor
・460 watts of pedal assist power
・Specially designed cooling fins, integrated RPM, and double pedal-torque sensors to ensure optimal motor temperature
・7 electrical assist levels
CARBON FIBER HYDROFOILS
・Foil tip design minimizes drag and extends effective wingspan
・Rear wingspan measures 6’ 6” (2m). Front wing, 3’11” (1.2m). General-purpose foils. Suitable for lakes, rivers, and ocean
・Fully submersible IPX8 rated battery housing system.
・70 cell lithium-ion pack
・36 volts of power capable of supplying 22 amps
・Easy access charging connector with a 4 hour charge time
・Battery ride time 1-4 hours dependant on the level of electric assist*
・GARMIN® eBike Remote includes on/off, and electrical assist level selection (up and down)
*Estimated battery run time may vary depending on the weight of the rider, weather conditions, and level of assist.
“FRONT TILLER” - NOSE OF BIKE
・The front tiller pivots automatically to adjust ride height to suit different water conditions, ensuring optimal planning levels, and rider efficiency.
Weighing a total of 67 lbs/30.5 kg* (including motor and battery) the Hydrofoiler XE-1 is as lightweight as industry-standard eBikes. *Total bike weight may vary based on production componentry
